Spray Bonding Nonwoven Production Line

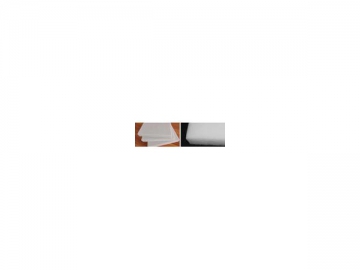

Spray bonding nonwoven production line is used to produce high-elasticity spray bonded nonwoven, Primaloft One, etc. In the manufacturing process, spray bonded nonwoven drying oven is used for glue spraying, drying and making the raw material fixed. There are three layers in the spray bonded nonwoven drying oven, in which the raw materials are conveyed in “s” type. By this means, the raw materials could be sprayed and dried uniformly and the spray bonded cotton could obtain higher air permeability and higher elasticity. Sprayed bonded cotton is always used to produce clothes, embroidery, bedding, travel products, etc.

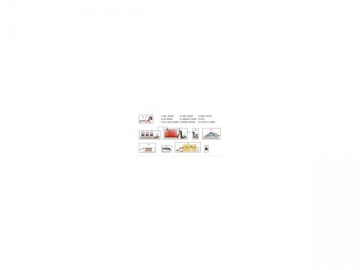

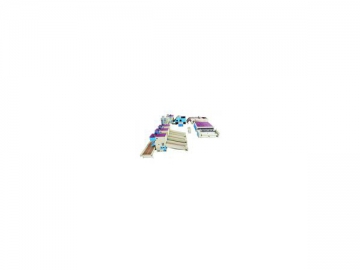

Recommended 2300mm spray bonding nonwoven production line is displayed below：- Bale opener
- Pre-opening machine
- Cotton blending machine
- Fine opening machine
- Vibrating feeder

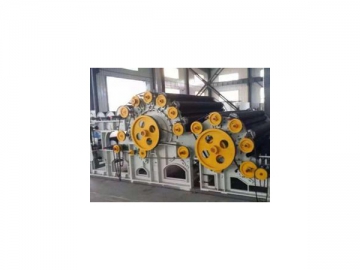

- Carding machine
- Cross lapper

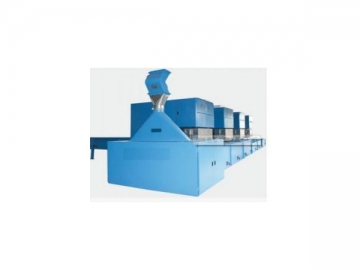

- Spray bonded cotton drying oven
- Fabric winder cutter

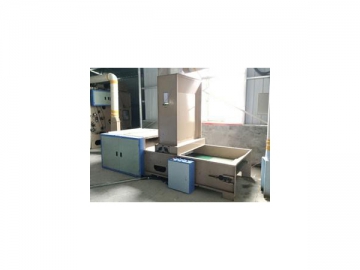

- Bale opener
Specification: 1200mm
- Pre-Opening machine
Specification: 1200mm
Power: 9kw - Cotton blending machine
Specification: 1200mm
Power: 7.5kw - Fine opening machine
Specification: 1300mm
Power: 7.5kw
- Vibrating Feeder
Specification: 1800mm

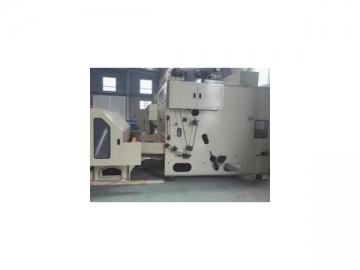

Power: 4.5kw - Carding machine
Specification: 1850mm

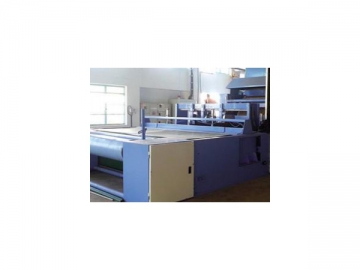

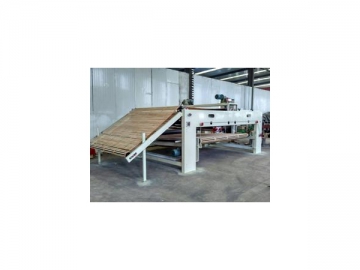

Power: 15kw - Cross lapper
Specification: 2500mm

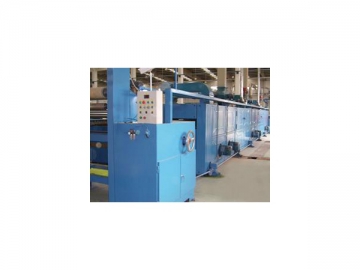

Power: 4kw - Spray bonded nonwoven drying oven
Specification: 2500mm
Power: 70kw - Fabric winder cutter
Specification: 2500mm
Power: 4.5kw
