Ahlbrandt
-
Ahlbrandt Ozone Converter Catalytic Air Purifier -

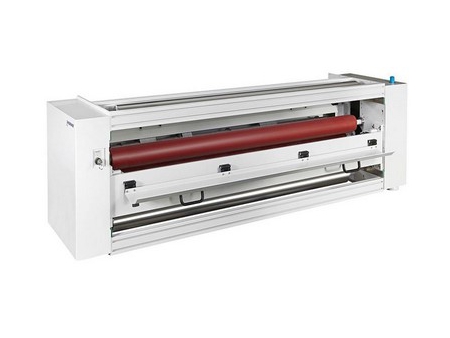

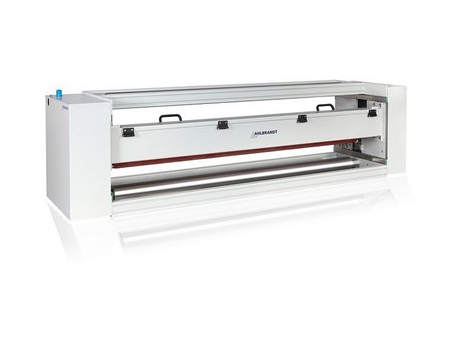

Ahlbrandt Corona Treater for Blown Film Extrusion - Large cover allows for easy access and maintenance;
- Easy web threading;
- Swiveling electrode for simple handling;
- Quick changeover of treater roller;
- Utilizing robust parts, prolonged service life;
- Simple and precise segment adjustment;
-

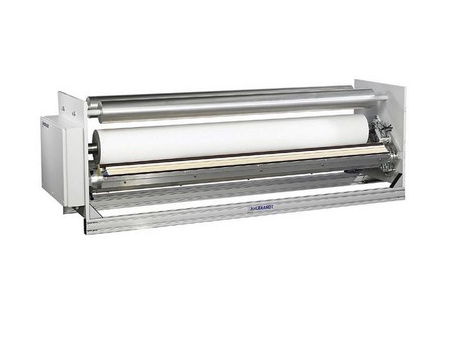

Ahlbrandt Corona Treater (Ceramic Electrode) - 180-degree rotation for easy operation;
- Easy and quick electrode changeover without tools up to 2000mm working width;
- Electrode options: 2 ceramic electrodes, 4 ceramic electrodes, 5 ceramic electrodes, metal rod electrodes, metal profile electrodes;
-

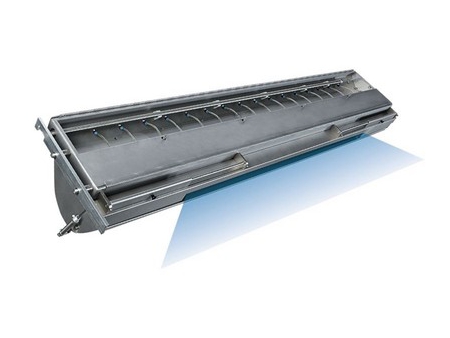

Ahlbrandt Rotor Spray System - Spray water or chemicals (in solution or dispersions);
- Spray liquids with maximum viscosity of 50MPa·s (solution) and 200MPa·s (dispersions), particle size up to 5μm;
- pH 4 to 8 (2 to 12 optional), temperature up to 60℃;
- Spray 0.5 to 150g/m2 (depending on production speed);
- Can be applied on either or both sides of a substrate;
- Moistening can be controlled according to external moisture measurement value;
- Tank volume 60L, with automatic refill level control;
- Rinsing program for chemical edition;
- Spray width up to 5.5mm;
Ahlbrandt Corona Generator
Technical Data - Power range: 1-40kW;
- Siemens KTP 700 touch panel;
- Power display in kW/corona dose;
- Thickness detection is adjustable on display;
- Precise transverse recess for bag printing;
- Multiple languages selectable;
- Power adjustment via analog or field bus;
- Process monitoring with memory and USB connection;
- UL/CSA version;
Advantages
- Modular design for simple replacement of parts;
- Integrated diagnostic system, more convenient service;
- Efficiency optimized by regulating resonance frequency;
- Electrode defect detection;
- Web server for on-site and remote service;
- Maximized output due to high efficiency;
Field Bus Connection
- Profinet, Profibus (others on request);
- Complete control via customer PLC;
- Status analysis for rapid service;
- Remote maintenance via network access;
- Operation on additional display;
