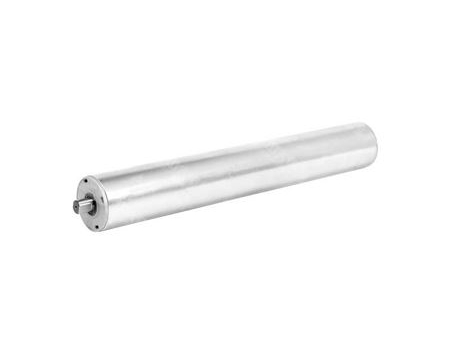

BL50 DC Drum Motor

Request a Quote

Website: http://zd-drivers.com/4-1-1-dc-drum-motor.html

Low Voltage Brushless Drum Motor

Rated Power W	Gear Box Series	Gear Ratio	Max. Speed m/min	Rated Speed RPM	Rated Torque Nm	Traction N	Length mm
40	1	3.65	129	821.9	0.420	16.73	≥270~1000
		5.36	87.9	559.7	0.610	24.57
		6.55	71.9	458.0	0.750	30.03
		8.63	54.6	347.6	0.990	39.56
	2	13.53	34.8	221.7	1.400	55.82	≥285~1000
		18.92	24.9	158.6	1.950	78.06
		24.65	19.1	121.7	2.540	101.70
		28.05	16.8	106.9	2.890	115.72
		33.92	13.9	88.40	3.500	139.94
		44.69	10.5	67.10	4.610	184.37
		58.22	8.10	51.50	6.000	240.19
	3	67.08	7.00	44.70	6.240	249.41	≥300~1000
		81.11	5.80	37.00	7.540	301.58
		91.36	5.20	32.80	8.490	339.69
		102.88	4.60	29.20	9.560	382.52
		118.98	4.00	25.20	11.06	442.38
		145.36	3.20	20.60	13.54	541.55
		165.64	2.80	18.10	15.00	600.00
		231.61	2.00	12.95	15.00	600.00
		301.68	1.60	9.940	15.00	600.00

Applications

Inspection Systems Security inspection conveyors.

Conveyor Systems Roller conveyors, automated production line rollers.

Automation Industry Belt conveyors for injection molding, weighing conveyors, AGV roller conveyors, tire conveyors, fully automated production lines.

Food Industry Grain conveyors, pasta processing equipment, automated vegetable washing systems.

Logistics Logistics sorting and conveyor lines.

Healthcare Therapy beds.

Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
