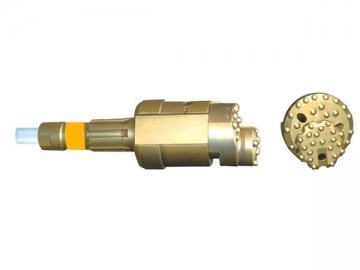

Two Piece Eccentric Overburden Drilling System
| A | E | C | D | |||
| System No. | Outer Dia. | Thickness | Reamed Dia. | Min. Inner Dia. of Casing Shoe | Hammer Type | Drill Pipe |
| K188 | 178 mm (7") | 13 mm - 19 mm (0.51")– (0.75") | 188 mm (7.4") | 144 mm (5.7") | DHD350 QL 50, SD-5, COP52/54 | 76mm- 89mm (3") - (3.5") |
| K240 | 219 mm (8.62") | 12 mm- 15mm (0.47")-(0.59") | 240 mm (9.45") | 192 mm (7.5") | DHD360, QL 60, SD-6, | 114 mm (4.5") |
| K305 | 273 mm (10.75") | 16 mm-20mm (0.63")-(0.78") | 305 mm (12") | 238 mm (9.4") | DHD380, QL 80, SD-8 | 114mm - 127mm (4.5") - (5") |
| K360 | 323mm (12.7") | 20 mm - 24 mm (0.78") - (0.94") | 360 mm (14.17") | 284 mm (11.8") | DHD380, QL 8, SD-8/10 | 127 mm (5") |
