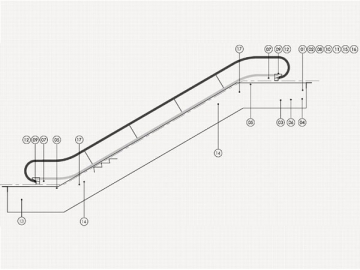

| Function | Code | Description | Remark |
| Standard Functions | |||
| 01 Protection of phase dislocation and phase loss | 3E | When phase dislocation or phase loss of input power supply occurs, the main circuit and control circuit will be cut off, in order to automatically stop the escalator. | |
| 02 Non-operation reversal protection | ARP | If reverse movement occurs by accident during operation, the device will cut off the power supply of driving unit and brake. | |
| 03 Additional brake | AUX-BK | The additional brake system will stop the escalator before that the operating speed is 1.4 times higher than the rated speed, or when the running direction changes. | When lifting height exceeds 6000mm |
| 04 Operating brake | MUSTACHE | The driving device is equipped with an operating brake. When the operating brake works, the escalator will stop. | |
| 05 Safety device of comb plate | CSS | If something gets stuck between comb plate and the pedal, the device will cut off the power supply of the driving unit and the brake. | |
| 06 Safety device of drive chain | DCS | If the drive train breaks or elongates abnormally, the device will cut off the power supply of driving unit and brake. | |
| 07 Emergency stop button | E-STOP | When an emergency occurs, press the emergency stop button to cut off the power supply of driving unit and brake. | |
| 08 Speed limiting device for low speed | GOV | If the speed is lower than rated speed by 20%, the device will cut off the power supply of motor and brake. | |
| 09 Handrail inlet cover | HGB | The long, flexible rubber cover covers at the handrail inlet, to avoid pinching or other accidents. | |
| 10 Speed limiting device 1 | HGD1 | The device will cut off the power supply of driving unit and brake when the operating speed reaches 1.2 times of the rated speed. | |
| 11 Speed limiting device 2 | HGD2 | In the operating speed exceeds the rated speed of 1.4 times before, the device operation, and cut off the additional brake power. | When the lifting height exceeds 6000mm |
| 12 handrail entry safety device | HGS | If a foreign object into the handrail at the entrance card, the device will shut down the drive and the host of the brake power. | |
| 13 step chain safety device | SCS | If the rung-strand breaks or abnormal elongation, the device will cut off the host drive and brake power. | |
| 14 Cascade subsidence safety device | SRS | If any part of the rung subsidence damage can not be properly engaged with the upper or lower comb plate, the device will cut off the host drive and brake power. | |
| Optional Functions | |||
| 15 signal interface means | BA | This output means escalator basic operational status signal. | When the Model KS-LB, KS-SB, KS-B can only choose one time |
| 16 Elevator Monitoring System | SMOS-II | The system uses state of the computer operation and fault monitoring of the escalator or walkway | |
| 17 skirting safety device | SSS | When a foreign body is sandwiched between steps and skirting, the device will shut down the drive and the host of the brake power. | |
Basic Specific
| project | Specifications Content | Remark | ||
| Armrest nominal width (mm) | 1200 | 1000 | 800 * | |
| Width between the armrest (mm) | 1228 | 1028 | 828 | |
| Escalator nominal width (mm) | 1000 | 800 | 600 | |
| Theory of transmission capacity (person / hour) | 9000 | 6750 | 4500 | |
| Series Model | KS-B/KS-LB, KS-LB/KS-LBF, KS-SF/KS-SBF | |||
| The inclination angle (degrees) | 30, 35 | |||
| Speed (m / S) | 0.5 | |||
| Escalators lift height (mm) | 1400-7000 | The inclination angle is 30 ° when | ||
| 1606-6000 | The inclination angle is 35 ° when | |||
| Power supply | 380V50Hz three-phase | |||
| Lighting power | 220V50Hz single-phase | |||
| Cascade horizontal movement distance (mm) | 800 (Level 2 step); 1200 (Level 3 rungs) | Lifting height (HE) ≦ 6000mm when | ||
| 1200 (Level 3 rungs) | Lifting height (HE) > 6000mm when | |||
| Environment | indoor | |||
| Passengers photoelectric type | Built-in skirt photoelectric | Frequency specifications, step ladders, multi ladder select Configure | ||
| External photoelectric column | Frequency specifications, single-staircase, the choice of configuration (with Shanghai Mitsubishi Elevator Co.,Ltd. multi ladder) | |||
Note: For model KS-SB/KS-SBF, the handrail nominal width of 800mmis not available.
Power Supply Data
Power Supply for Running (3 Phases)
| Handrails nominal width | Lifting height by HE (mm) | Power supply capacity (kVA) |
| 1200 | HE ≦ 4000 | 8 |
| 4000 < HE ≦ 6000 | 10.4 | |
| 6000 < HE ≦ 7000 | 12.5 | |
| 1000 | HE ≦ 5000 | 8 |
| 5000 < HE ≦ 7000 | 10.4 | |
| 800 | HE ≦ 7000 | 8 |
Power Supply for Lighting (Single Phase)
| Series Model | Lighting height by HE (mm) | Power supply capacity (kVA) |
| KS-LB/KS-LBF | HE ≦ 4000 | 2 |
| 4000 < HE ≦ 6000 | 2.3 | |
| 6000 < HE ≦ 7000 | 2.5 | |
| KS-B/KS-BF | HE ≦ 7000 | 1.3 |
| KS-SB/KS-SBF | HE ≦ 7000 | 1.3 |
