Characteristic 1.This ZBS-450 flexo printing machine varies in printing with 4 to 6 colors. It specially adopts the ceramic anilox roll for transfer the inks. 2. Apart from the control of magnetic powder brakes and clutches, its unwinding and rewinding units are also controlled by Mitsubishi automatic tension controller. 3. The printing plate of each printing unit allows 360 degree adjustment, and a series of hot air dryers is mounted for printing units. 4. With one die-cutting station, this flexo printing machine can accomplish the material feeding, printing, vanishing, drying, laminating, die cutting and rewinding in one process. It is ideal for printing trade invoice, top grade adhesive label and other products. 5. As the machine stops, the ink rollers that are automatically separated from the printing roller will keep running at low speed, preventing the ink from drying. 6. The main motor of the flexo printing machine is collocated with imported continuously variable frequency speed governor, ensuring its stable performance.
Technical Specification
Model
ZBS-450
Printing speed
50m/min.
Printing color
4 colors
Max. width of paper
480mm
Max .printing width
450mm
Max. unwinding/rewinding diameter
600mm
Printing length
175-355mm
Thickness of flexo plate
1.7mm or 1.14mm
Precision of chromatography
±0.1mm
Dimension
2.1m×1.35m×2.3m
Machine weight
About 2200kg
Shipping Information
Packing
Export standard wooden case
Model No.
ZBS-450
Standard
1-6 colors
Productivity
15 sets per month
Unit Price/Payment
USD16000-USD65000
H.S. Code
84431600
Trademark
WEIGANG
Origin
China
Min. Order
1 set
Transportation
Land, sea, air
Options 1.Web guiding system 2.UV dryer 3.Separate unwinder shelf (diameter up to 900mm) 4.Corona treater 5.Cold stamping unit 6.Video inspecting system
Machine Photos

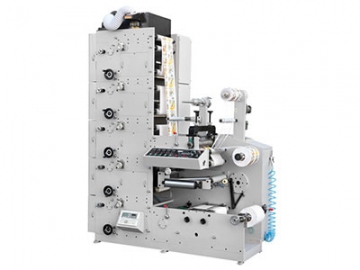

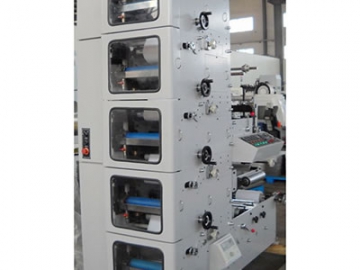

4 colors
Die cutting station with import bearing

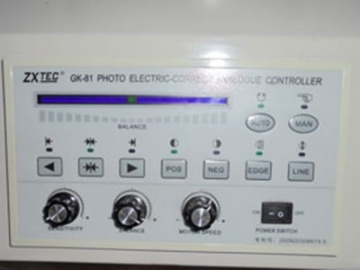

Web guiding system

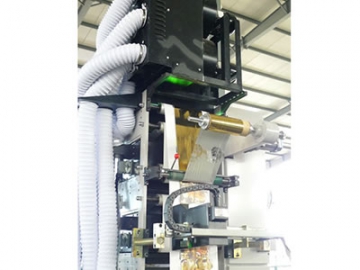

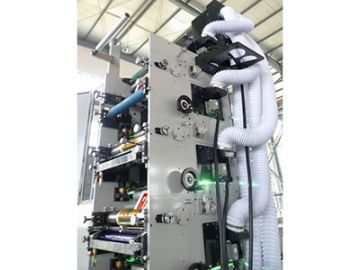

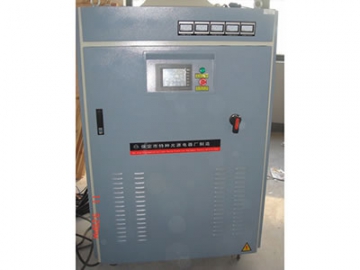

UV dryer and controller

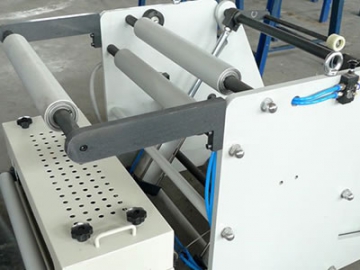

Unwinder with corona treater

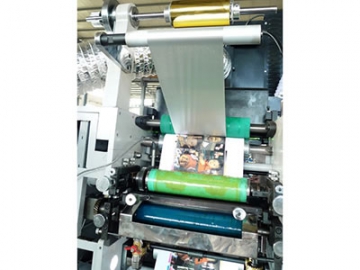

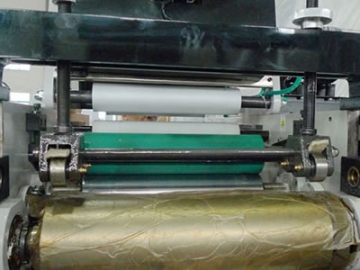

Cold stamping unit
Cold stamping unit

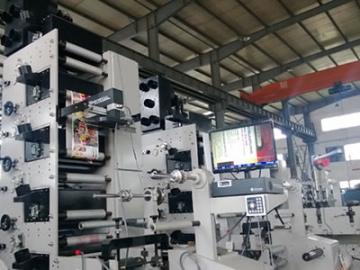

Video inspecting system
Technical Specification
Model
ZBS-450
Printing speed
50m/min.
Printing color
5 colors
Max. width of paper
480mm
Max .printing width
450mm
Max. unwinding/rewinding diameter
600mm
Printing length
175-355mm
Thickness of flexo plate
1.7mm or 1.14mm
Precision of chromatography
±0.1mm
Dimension
2.1m×1.35m×2.6m
Machine weight
About 2400kg
Shipping Information
Packing
Export standard wooden case
Model No.
ZBS-450
Standard
1-6 Colors
Productivity
15sets per month
Unit Price/Payment
USD16000-USD65000
H.S. Code
84431600
Trademark
WEIGANG
Origin
China
Min. Order
1 set
Transportation
Land, sea, air
Options 1.Web guiding system 2.UV dryer 3.Separate unwinder shelf (diameter up to 900mm) 4.Corona treater 5.Cold stamping unit 6.Video inspecting system 7.Safe cover for printing unit
Machine Photos
5 colors
Die cutting station with import bearing
Web guiding system
UV dryer and controller
UV dryer and controller
Unwinder with corona treater
Cold stamping unit
Cold stamping unit
Video inspecting system
Safe cover for printing unit
Technical Specification
Model
ZBS-450
Printing speed
50m/min.
Printing color
6 colors
Max. width of paper
480mm
Max .printing width
450mm
Max. unwinding/rewinding diameter
600mm
Printing length
175-355mm
Thickness of flexo plate
1.7mm or 1.14mm
Precision of chromatography
±0.1mm
Dimension
2.1m×1.35m×3.1 m
Machine weight
About 2600kg
Shipping Information
Packing
Export standard wooden case
Model No.
ZBS-450
Standard
1-6 Colors
Productivity
15 sets per month
Unit Price/Payment
USD16000-USD65000
H.S. Code
84431600
Trademark
WEIGANG
Origin
China
Min. Order
1 set
Transportation
Land, sea, air
Options 1.Web guiding system 2.UV dryer 3.Separate unwinder shelf (diameter up to 900mm) 4. Corona treater 5.Cold stamping unit 6.Video inspecting system 7.Safe cover for printing unit 8.Elctric hoist
