Pre-processing Equipment for Auto Glass and Industrial Glass
The full line contains the following equipments: automatic loading station,shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3, drilling machine 1, shuttle conveyor 4, drilling machine 2, shuttle conveyor 5.
Specifications:| Model No. | NJ-MCBGD1085 |
| Max. glass size | 1000M*850MM |
| Min. glass size | 300MM*300MM |
| Speed (max.size) | 20S/P |
| Processing thickness | 2-6MM |
| Processing accuracy (circum) | ±0.15MM |
The full line contains the following equipments: automatic loading station, shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor, drilling machine, shuttle conveyor, drilling machine, shuttle conveyor 3.
Specification:| Model No. | NJ-QBM1318 |
| Max. glass size | 1300M*1800MM |
| Min. glass size | 700MM*650MM |
| Speed (max.size) | 24S/P |
| Processing thickness | 2-6MM |
| Processing accuracy (circum) | ±0.15MM |
The full line contains the following equipments: automatic loading station, shuttle conveyor 1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3.
Specifications:| Model No. | NJ-QBM1322 |
| Max. glass size | 1300M*2250MM |
| Min. glass size | 900MM*700MM |
| Speed (max.size) | 35S/P |
| Processing thickness | 2-6MM |
| Processing accuracy (circum) | ±0.15MM |
The full line contains the following equipments: automatic loading station, shuttle conveyor1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3, drilling machine 1, shuttle conveyor 4, drilling machine 2, shuttle conveyor 5.
Specifications:| Model No. | NJ-QBMZ8013 |
| Max. glass size | 800M*1300MM |
| Min. glass size | 300MM*300MM |
| Speed (max.size) | 12S/P |
| Processing thickness | 2-6MM |
| Processing accuracy (circum) | ±0.15MM |
The full line contains the following equipments: automatic loading station, shuttle conveyor1, cutting & breaking machine, shuttle conveyor 2, grinding (including water recycling device), shuttle conveyor 3.
Specifications:| Model No. | NJ-QBM1322 |
| Max. glass size | 1300M*2250MM |
| Min. glass size | 900MM*700MM |
| Speed (max.size) | 35S/P |
| Processing thickness | 2-6MM |
| Processing accuracy (circum) | ±0.15MM |

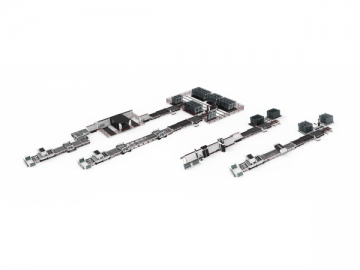

Automotive glass preprocessing line which consists of automatic loading, cutting, breaking, grinding and transport is whole automotive glass preprocessing equipment. Taking possible situations into consideration, preprocessing line is designed according to client's requirements.
