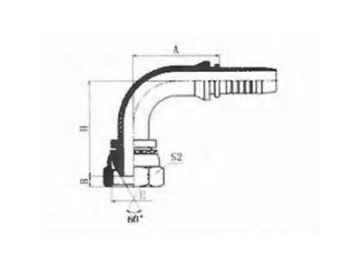

21613-W NPSM 90° Elbow Female 60° Cone Fittings

21613-W NPSM 90° Elbow Female 60° Cone Fittings

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel NPSM 90° elbow female 60° cone fittings
  • Carbon steel NPSM 90° elbow female 60° cone fittings
21613-W NPSM 90° Elbow Female 60° Cone Fittings List
Part No. Thread Hose Bore Dimensions
E DN DASH A C S2
21613-12-12W 3/4''×14 20 12 26.5 9 32
21613-16-16W 1''×11.5 25 16 30.4 10.5 41
21613-20-20W 1.1/4''×11.5 32 20 32.5 11 50
21613-24-24W 1.1/2''×11.5 40 24 36.7 14 55
21613-32-32W 2''×11.5 50 32 36.5 16 70
