Innovation Series Laminating Line
The innovation series laminating line uses PP or PE for single/dual sided laminating or paper-plastic laminating to produce two-in-one or three-in-one plastic products. The whole process, including substrate feeding, laminating and rewinding, is controlled using advanced electrical and mechanical devices, with a processing speed up to 120m/min.
Applications: waterproof tarpaulin, jumbo bag, geotextile, woven bag, various mechanical fabrics.
Technical specifications
| Model | SJ-FMF90/1600 | SJ-FMF100/2200 | SJ-FMF120/3500 | SJ-FMF120/4200 |
| Extruder | E90/33 | E100/33 | E120/30 | E120/33 |
| Diameter of screw | 90mm | 100mm | 120mm | 120mm |
| L/D ratio | 33:1 | 33:1 | 30:1 | 33:1 |
| Motor of extruder | 45kw | 75kw | 90kw | 110kw |
| Max. Output | 250kg/h | 300kg/h | 350kg/h | 400kg/h |
| Width of T-die | 1650mm | 2300mm | 3600mm | 4300mm |
| Width of coating | 900 - 1500mm | 1300 - 2100mm | 2000 - 3400mm | 2500 - 4100mm |
| Thickness of coating | 0.012 - 0.05mm | 0.015 - 0.08mm | 0.015 - 0.08mm | 0.015 - 0.08mm |
| Processing speed | 20 - 120m/min | 20 - 120m/min | 20 - 120m/min | 20 - 120m/min |
| Length of cooling roller | 1600mm | 2200mm | 3500mm | 4200mm |
| Width of processed material | 850 - 1450mm | 1250 - 2050mm | 1950 - 3350mm | 2450 - 4050mm |
| Range of unwinding web guide | ±150mm | ±150mm | ±150mm | ±150mm |
| Max. dia. of unwinding/rewinding | 1500mm | 1500mm | 1500mm | 1500mm |
| System installed power | 140kw | 190kw | 230kw | 270kw |
| Normal operational power (approx.) | 90kw | 120kw | 150kw | 180kw |
| Overall dimension (L×W×H) | 12500×10500×3500 | 13500×11500×3500 | 16000×14000×3800 | 18000×15500×3800 |

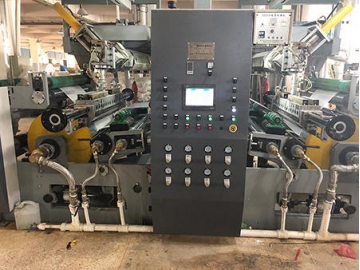

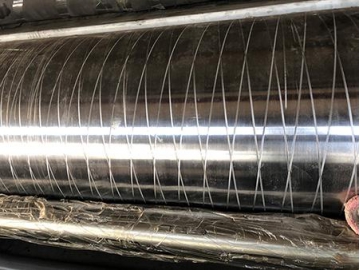

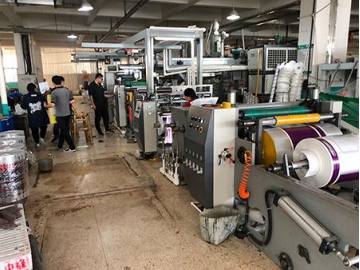

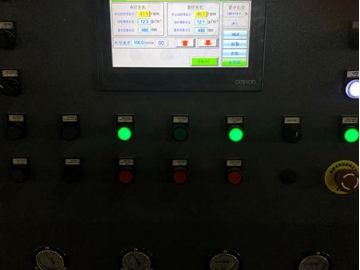

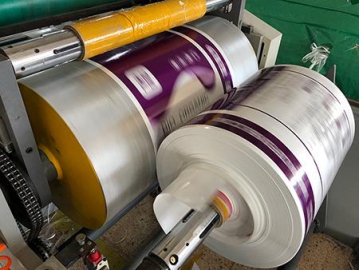

Image Gallery – Extrusion Lamination Lines
