6° Tapered Drilling Tools Manufacturer

6° Tapered Drilling Tools

: http://max-drilling.com

Bit Diameter: 30-41mm
Size: Hex. 22mm, 25mm
Taper degree: 4°46', 6°, 7°, 11°, 12°
Applications: Quarrying, small hole drilling

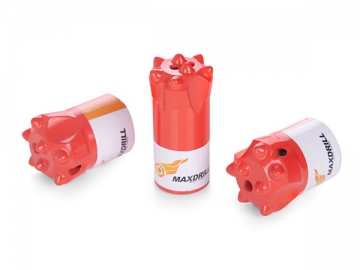

Our tapered bits include button, cross and chisel designs.
Longer service life and lower drilling costs.
11°, 12° tapered button bit with hot zinc-coating

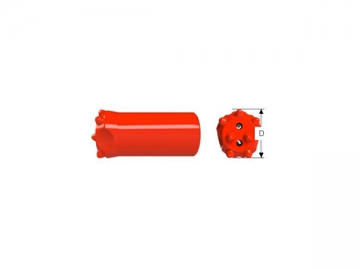

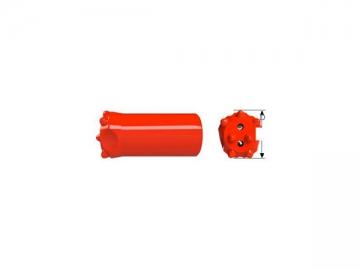

Button bit	Dimensions D		Flushing hole (mm)		Buttons (mm)		Angle	Class	Part no.
Button bit	mm	in	Front No size	Gauge No size	Front.,No size	Gauge.,No size	Angle	Class	Part no.
H22	32 34 36 38 41	1 1/4 1 11/32 1 27/64 1 1/2 1 5/8	2×4 2×4 2×4.5 2×5 2×5	1×4 1×4 1×4.5 1×4.5 1×4.5	2×7 2×7 2×7 2×7 2×7	5×7 5×7 5×8 5×8 5×9	40° 40° 40° 40° 40°	- - - - -	30322207-06 30342207-06 30362207-06 30382207-06 30412207-06
H22	34 36 38 40	1 11/32 1 27/64 1 1/2 1 37/64	2×4 2×4.5 2×5 2×5	1×4 1×4.5 1×4.5 1×4.5	2×7 2×7 2×7 2×8	6×7 6×7 6×8 6×8	35° 35° 35° 35°	- - - -	30342208-06 30362208-06 30382208-06 30402208-06
H25	36 38 41 43	1 27/64 1 1/2 1 5/8 1 11/16	2×4.5 2×5 2×5 2×5	1×4.5 1×4.5 1×5 1×5	2×7 2×8 2×7 2×8	5×8 5×8 5×9 5×9	35° 35° 35° 35°	- - - -	30362507-06 30382507-06 30412507-06 30432507-06

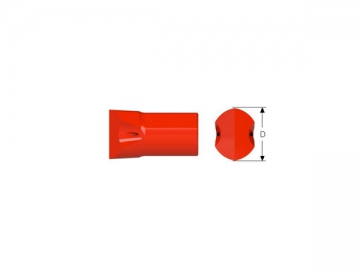

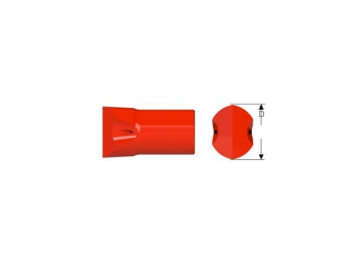

Chisel bit
H22	30 32 34 36 38 40	1 3/16 1 1/4 1 11/32 1 27/64 1 1/2 1 37/64	- - - - - -	2×5 2×5 2×5 2×5 2×5.5 2×5.5	- - - - - -	- - - - - -	- - - - - -	- - - - - -	313022-06 313222-06 313422-06 313622-06 313822-06 314022-06
H25	30 32 34 36 38 40	1 3/16 1 1/4 1 11/32 1 27/64 1 1/2 1 37/64	- - - - - -	2×5 2×5 2×5 2×5 2×5.5 2×5.5	- - - - - -	- - - - - -	- - - - - -	- - - - - -	313025-06 313225-06 313425-06 313625-06 313825-06 314025-06

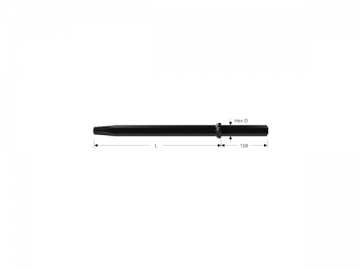

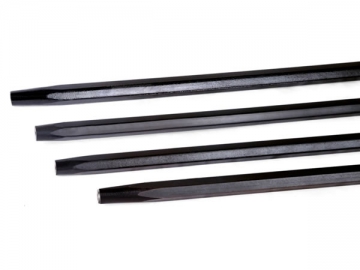

Drill rod	Dimensions L			Dimensions D		Part no
Drill rod	mm	ft	in	mm	in	Part no

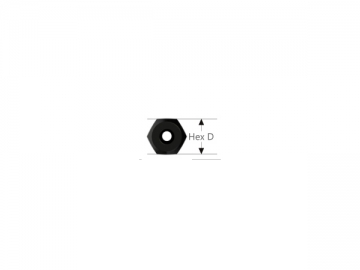

Hex shank 22*108 mm	600 800 1200 1600 2400 3200 4000	2 2 3 5 7 10 13	- 7 11 - - 6 -	22 22 22 22 22 22 22	7/8 7/8 7/8 7/8 7/8 7/8 7/8	10220606 10220806 10221206 10221606 10222406 10223206 10224006
Hex shank 25*108 mm	800 1600 2400 3200 4000	- 4 6 8 10	- - - - -	25 25 25 25 25	1 1 1 1 1	10251206 10251806 10252406 10253006 10254006
