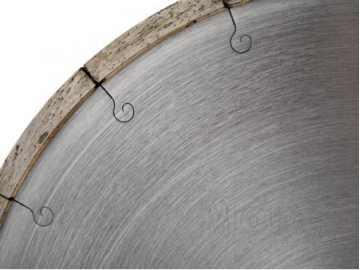

Welded Diamond Cutting Blade

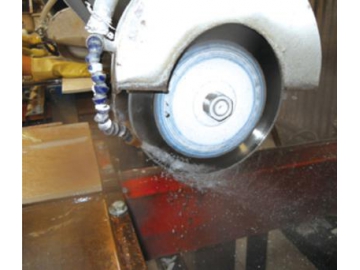

These welded diamond cutting blades are specially engineered for polished glaze tile cutting, half cutting, or grooving processes. They are compatible with single blade continuous auto machines, double blades continuous auto cutting machines, single blade cutting machines, and other ceramic processing equipment.
ApplicationWorking Condition: Water Cooling

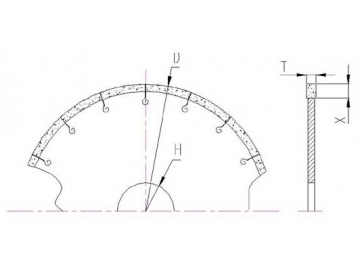

| Code | Outer Diameter | Thickness | Height (mm) | Arbor (mm) | Grit | |
| Inches | Metric(mm) | |||||
| WST180 | 7 | 180 | 1.8/2.0 | 10 | 60 | D126、D151、D181、D213、D252、D301、D427 |
| WST200 | 8 | 200 | 1.8/2.0 | 10 | 60 | |
| WST250 | 10 | 250 | 1.8/2.0/2.2/2.4 | 9/10 | 60 | D126、D151、D181、D213、D252、D301、D427 |
| WST300 | 12 | 300 | 1.8/2.0/2.2/2.4 | 9/10 | 60 | |
| WST350 | 14 | 350 | 2.4/2.6/2.8 | 9/10 | 50/60 | |
| WST400 | 16 | 400 | 2.4/2.6/2.8 | 9/10 | 50/60 | |
| WST450 | 18 | 450 | 2.6/3.0 | 9/10 | 50/75 | |
Remark: Remark: Other specs are available upon request.
